The MIL-DTL-83513 Micro-D Connectors are a highly reliable and durable solution for demanding electrical applications, designed to meet the stringent requirements of military specifications. This product, part of the M83513 series, offers exceptional performance and quality with a variety of features that make it ideal for use in harsh environments.
Key Features:

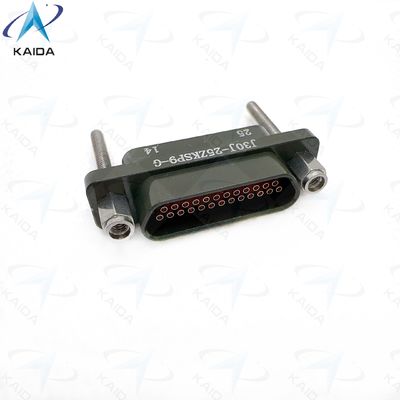

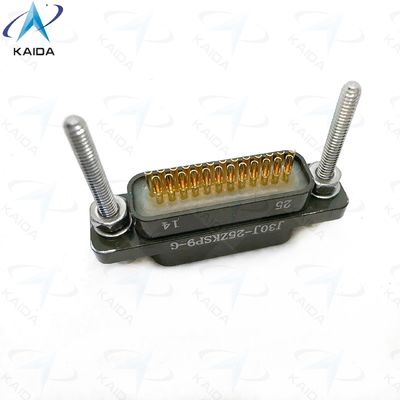

The MIL-DTL-83513 Micro-D Connectors, specifically the J30J-25ZKSP9-G model, are designed to provide a secure and reliable connection in critical applications. With a high mating cycle rating of 500 cycles, these connectors offer long-term durability and performance, ensuring consistent connectivity over an extended period of use.
The gender of the connector is a receptacle with P9 accessory, providing versatility and compatibility with various mating connectors. This design allows for easy integration into different systems and applications, making the MIL-DTL-83513 Micro-D Connectors a versatile and practical choice for a wide range of electrical setups.
With a voltage rating of 500V, these connectors are capable of handling high voltage applications with ease, offering reliable performance even in demanding electrical environments. The contact plating of gold over nickel ensures excellent conductivity and corrosion resistance, maintaining a stable connection for optimal electrical transmission.
Compliant with MIL Spec M83513, these connectors meet the rigorous standards set forth by military specifications, making them a trusted and proven choice for mission-critical applications. The M83513 series is known for its high quality and reliability, and the MIL-DTL-83513 Micro-D Connectors uphold this reputation with their robust construction and dependable performance.
Overall, the MIL-DTL-83513 Micro-D Connectors, featuring the J30J-25ZKSP9-G model, are a top-of-the-line solution for applications that require a durable, high-performance connector. With their exceptional mating cycle rating, gender versatility, high voltage rating, and superior contact plating, these connectors deliver reliable connectivity in challenging environments, meeting the stringent requirements of military specifications and ensuring optimal performance in critical electrical systems.
| Contact Plating | Gold Over Nickel |
| Contact Material | Copper Alloy |
| Operating Temperature | -55 To +125°C |
| Shell Material | Aluminium Olive Green Plating |
| Voltage Rating | 500V |
| Current Rating | 3 A |
| Gender | Receptacle With P9 Accessory |
| Part Number | J30J-25TJSL-G |
| MIL Spec | M83513 |
| Mating Cycles | 500 |
The KAIDA J30J-25ZKSP9-G Micro-D Connectors, meeting MIL-DTL-83513 specifications, are ideal for a variety of product application occasions and scenarios. With their reliable performance and high-quality construction, these connectors are well-suited for demanding environments.
These Micro-D connectors are manufactured in China, ensuring quality control and competitive pricing. The J30J-25ZKSP9-G model features copper alloy contact material, providing excellent conductivity and durability. The connectors are designed to handle voltage ratings of up to 500V, making them suitable for a wide range of electrical applications.
The contact plating of gold over nickel ensures corrosion resistance and reliable signal transmission. The olive green cadmium metal shell provides robust protection and a distinctive appearance, making these connectors suitable for military and industrial applications where durability and performance are critical.
With solder contacts for secure connections, the KAIDA J30J-25ZKSP9-G Micro-D Connectors are easy to install and maintain. The part number J30J-25TJSL-G further specifies the configuration of these connectors, guaranteeing compatibility and ease of use in various systems.
Whether used in aerospace, defense, telecommunications, or other industries, these Micro-D connectors offer a reliable solution for connecting electronic components. Their rugged construction and dependable performance make them a preferred choice for mission-critical applications where quality and longevity are essential.
Product Customization Services for the MIL-DTL-83513 Micro-D Connectors:
Brand Name: KAIDA
Model Number: J30J-25ZKSP9-G
Place of Origin: China
MIL Spec: M83513
Voltage Rating: 500V
Mating Cycles: 500
Gender: Receptacle With P9 Accessory
Contact Material: Copper Alloy
Product attributes include the M83513 series and solder contacts.
The MIL-DTL-83513 Micro-D Connectors product offers comprehensive Product Technical Support and Services to ensure optimal performance and functionality. Our team of experts is dedicated to providing assistance with product selection, application design, installation guidance, troubleshooting, and more. Additionally, we offer customization services to meet specific requirements and deliver tailored solutions for unique applications.
Product Name: MIL-DTL-83513 Micro-D Connectors
Description: High-quality micro-D connectors meeting MIL-DTL-83513 specifications.
Packaging: Each connector is individually packaged in a protective anti-static bag to prevent damage during shipping and handling.
Shipping: The connectors are placed in a sturdy cardboard box with ample padding to ensure safe transport. Shipping labels are securely attached to the outside of the box for easy identification.
Q: What is the brand name of the Micro-D Connectors?
A: The brand name of the Micro-D Connectors is KAIDA.
Q: What is the model number of the Micro-D Connectors?
A: The model number of the Micro-D Connectors is J30J-25ZKSP9-G.
Q: Where is the Micro-D Connectors manufactured?
A: The Micro-D Connectors are manufactured in China.
Q: Are the Micro-D Connectors compatible with other brands' products?
A: The Micro-D Connectors are specifically designed for use with KAIDA products, but compatibility with other brands may vary.
Q: What is the warranty period for the Micro-D Connectors?
A: Please refer to the warranty information provided by the manufacturer for details on the warranty period for the Micro-D Connectors.
